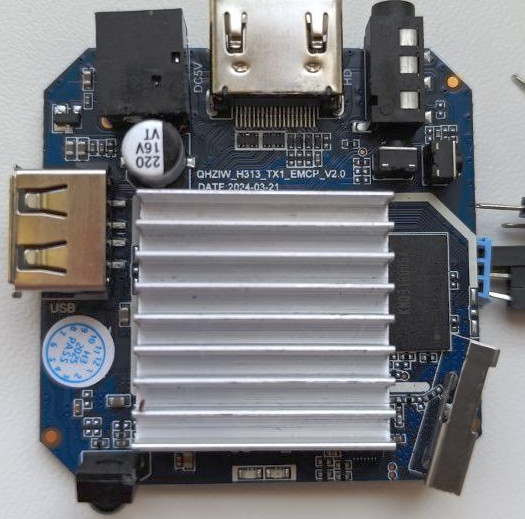

Wudung W01 PCB top view, with combined eMMC/DRAM chip and WiFi chip, SoC Allwinner H313 is under the heat spreader. 3 of 4 UART area contacts are already soldered on the rear side.
